ED-TS01

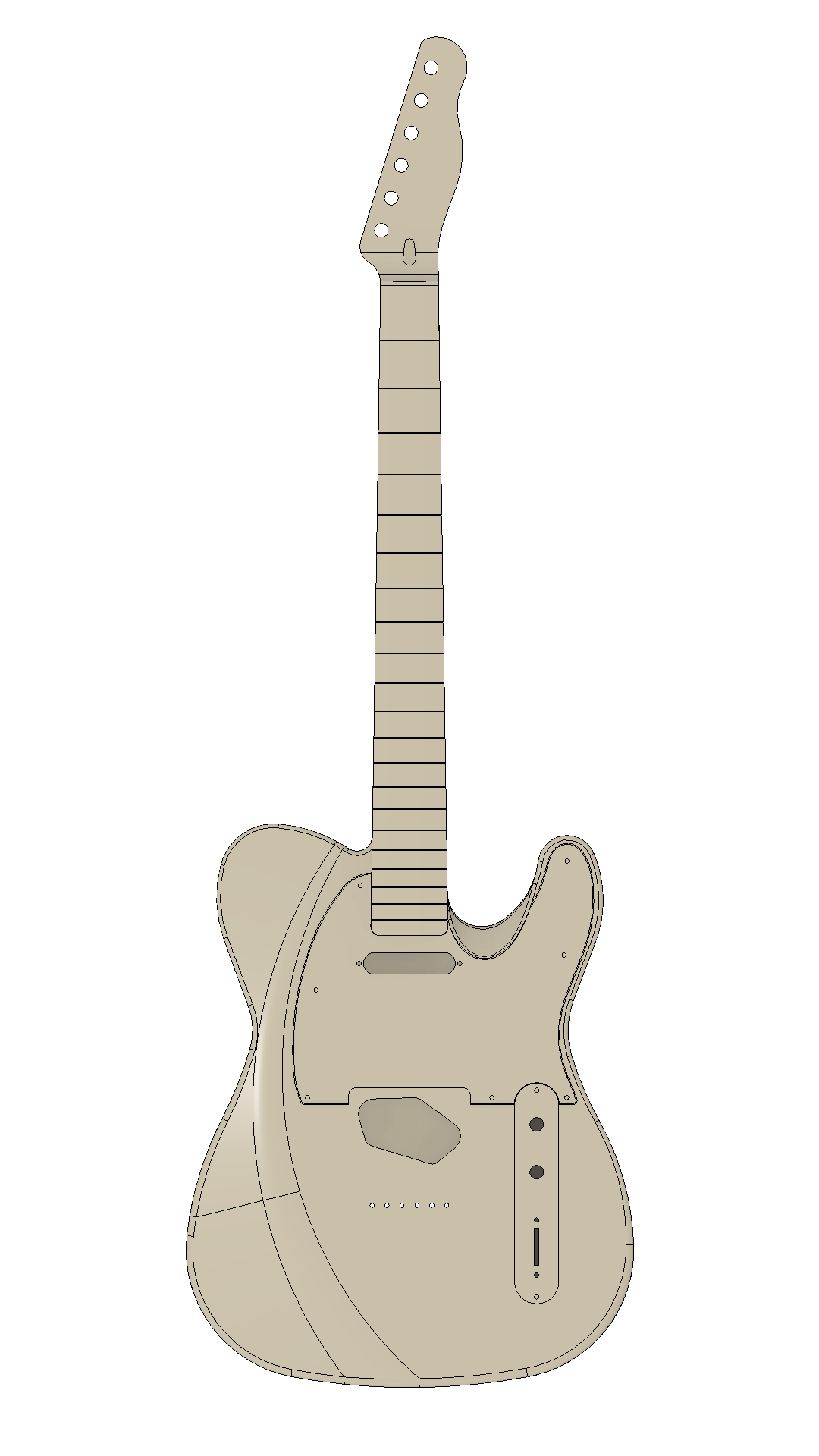

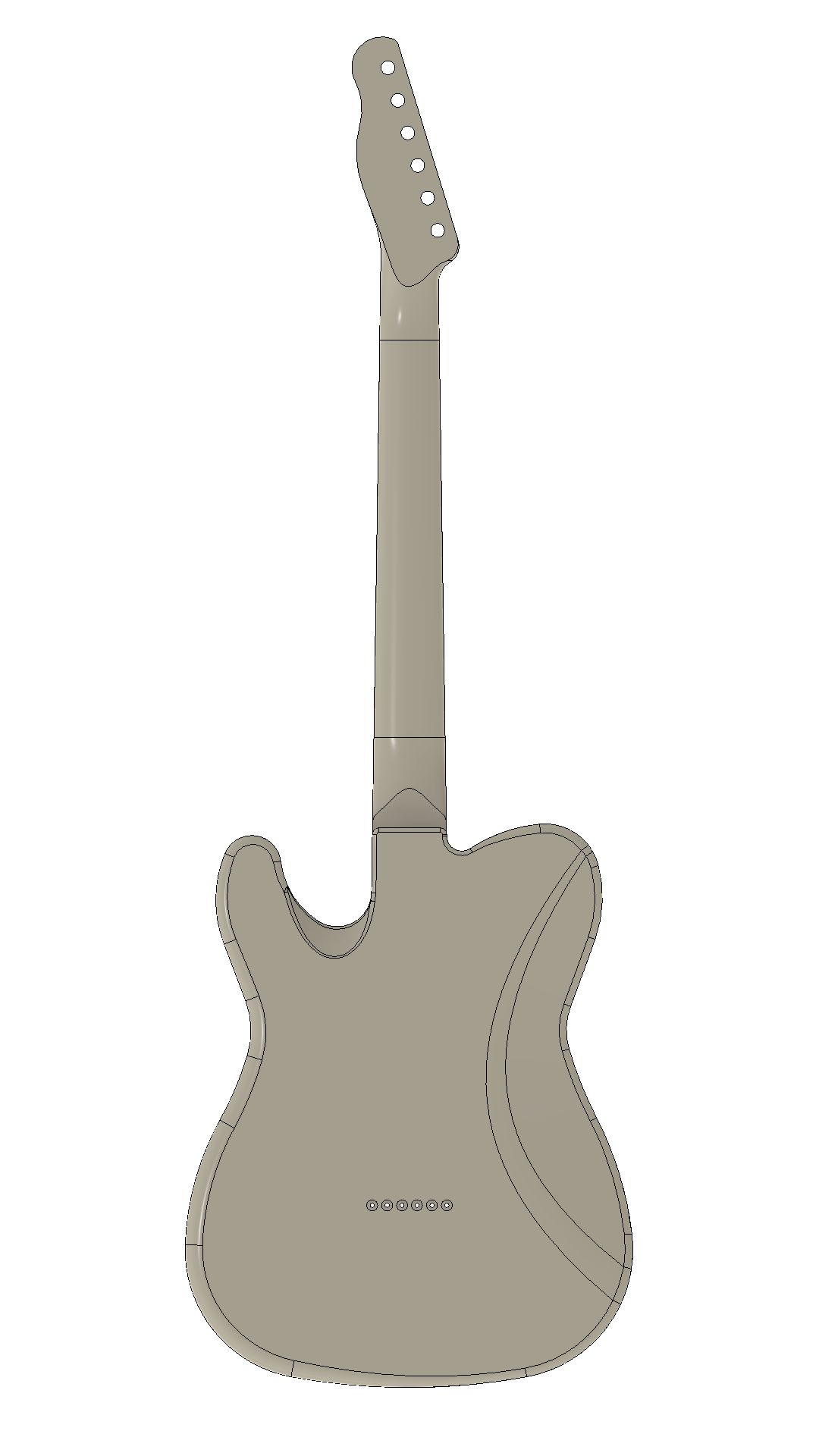

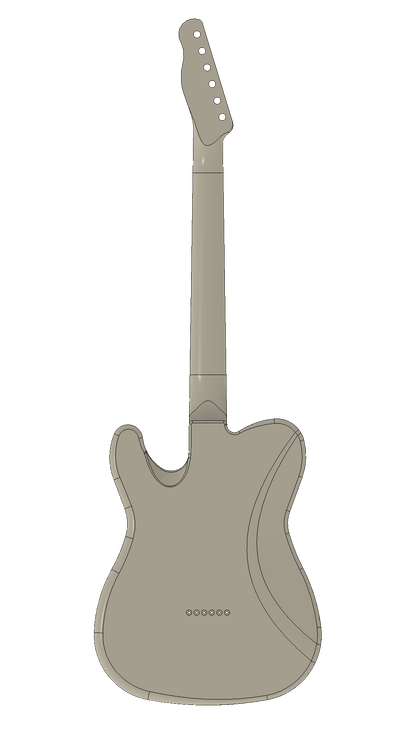

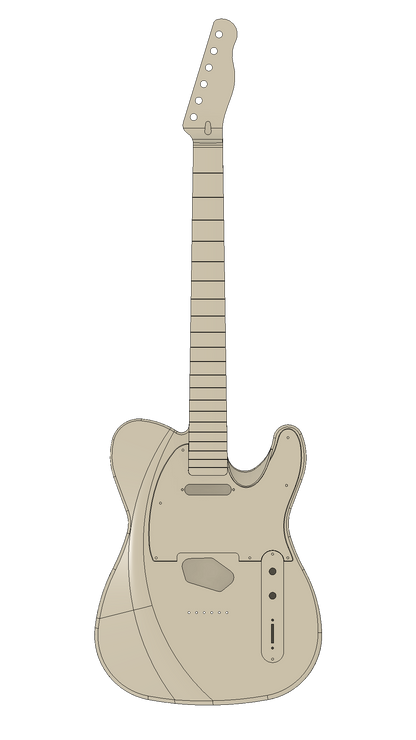

ED-TS01 – T-Style Modern-Contoured Guitar
Complete CNC Files for Custom Guitar Building

Build your own T-style guitar with modern ergonomic contours using our precision CAD/CAM package. The ED-TS01 combines classic design with contemporary comfort features—perfect for CNC router builders looking to create a professional-quality instrument.

Specifications:

-Scale Length: 25.5"

-Frets: 20

-Fretboard Radius: 9.5"

-Body Style: T-Style with carved top and modern contours

-Neck Profile: Comfortable C-shape with smooth transitions

-Pickups: Standard T-style single-coil routing

-Bridge: 6-saddle T-style hardtail bridge routing

-Ferrules: String-through-body design

-Contours: Belly cut and forearm relief for enhanced playability

What's Included:
✓ G-Code files (.nc, .tap) – Ready to run on your CNC router
✓ CAD files (DXF, DWG) – For customization and modification
✓ Bonus_files folder – 3D models and 2D drawings
✓ Complete illustrated instructions (PDF) – Step-by-step CNC programs, tool paths, bit specifications, blank setup, and assembly guide
✓ Blank size specifications – Exact dimensions for body, neck, and fretboard blanks

CNC Requirements:

-Body blank: 15" x 22" x 1.75"

-Neck blank: 5" x 32" x 1-5/16"

-Fretboard blank: 3" x 23" x 0.25"

-Recommended bits: 1/4" flat, 1/4" ball, 1/8" flat, 1/32" flat, 0.023" flat

-Compatible with: Mach3, UCCNC, LinuxCNC, Vectric VCarve, and most CNC control software

Truss Rod Compatibility:

-Designed for 4mm Allen nut hot rod truss rod (StewMac or equivalent)

-Specifications included in instructions PDF

File Delivery:
Digital download immediately after purchase. All files delivered as a ZIP package to your email within minutes.

Note: This is a digital product. No physical items will be shipped. Files are for personal use only—no commercial reproduction.
