ED-PB02

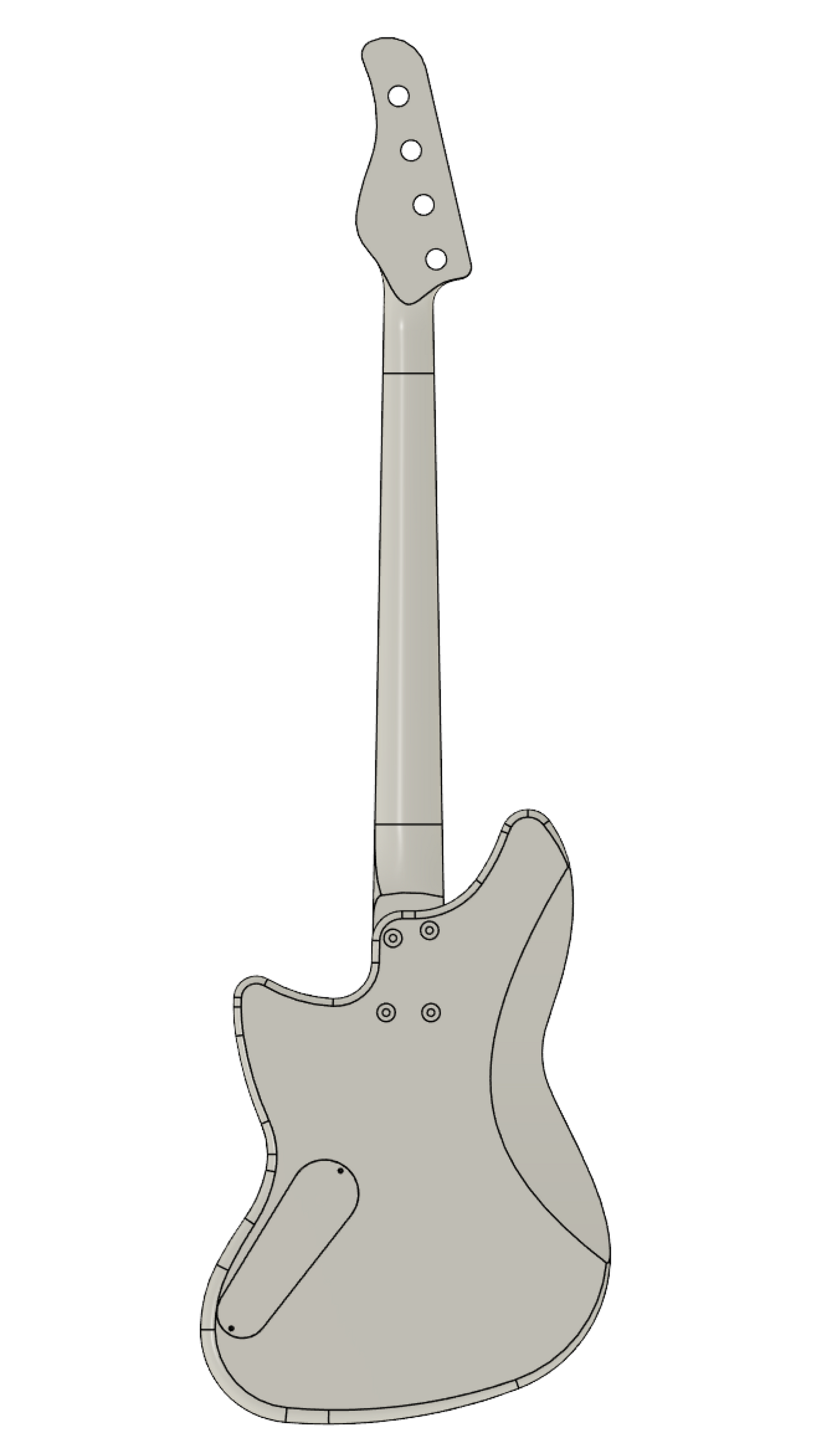

ED-PB02 – Offset Body Modern-Contoured Bass Guitar
Complete CNC File Set for Custom Bass Building

Build your own offset bass with serious ergonomics and modern playability using our precision CAD/CAM package. The ED-PB02 features a 34" scale length with full 3D body contouring — arm contour, beveled body, and extended heel sculpt — designed specifically to push the limits of what your CNC can do. This is an offset bass built for players and builders who want more than a flat slab.

Specifications:

• Scale Length: 34"

• Frets: 20

• Fretboard Radius: 9.5"

• Body Style: Offset with Belly Cut & Neck Heel Access

• Neck Profile: 1st fret 0.832" / 12th fret 0.923"

• Pickups: J-style routing (offset configuration)

• Contours: Arm Contour, Beveled Body, Heel Sculpt (Groove Surfaces suite)

What's Included:
✓ G-Code files  – Ready to run on your CNC router
✓ Complete illustrated instructions (PDF) – Step-by-step CNC programs, tool paths, bit specs, blank setup, and flip procedures
✓ Blank size specifications – Exact dimensions for all parts

Blank Sizes Required:

• Body blank: 15" x 22" x 1.75"

• Neck blank: 5" x 32" x 1-5/16"

• Fretboard blank: 3" x 23" x 0.25"

• Scratch plate blank: 9" x 10" x 0.063"

• Circuit plate blank: 3" x 7" x 1/8"

File Delivery:
Digital download immediately after purchase. All files delivered as a ZIP package — instant access, no waiting.

This is a digital product. No physical items will be shipped. Files are for personal use only — no commercial reproduction.
