ED-HL01

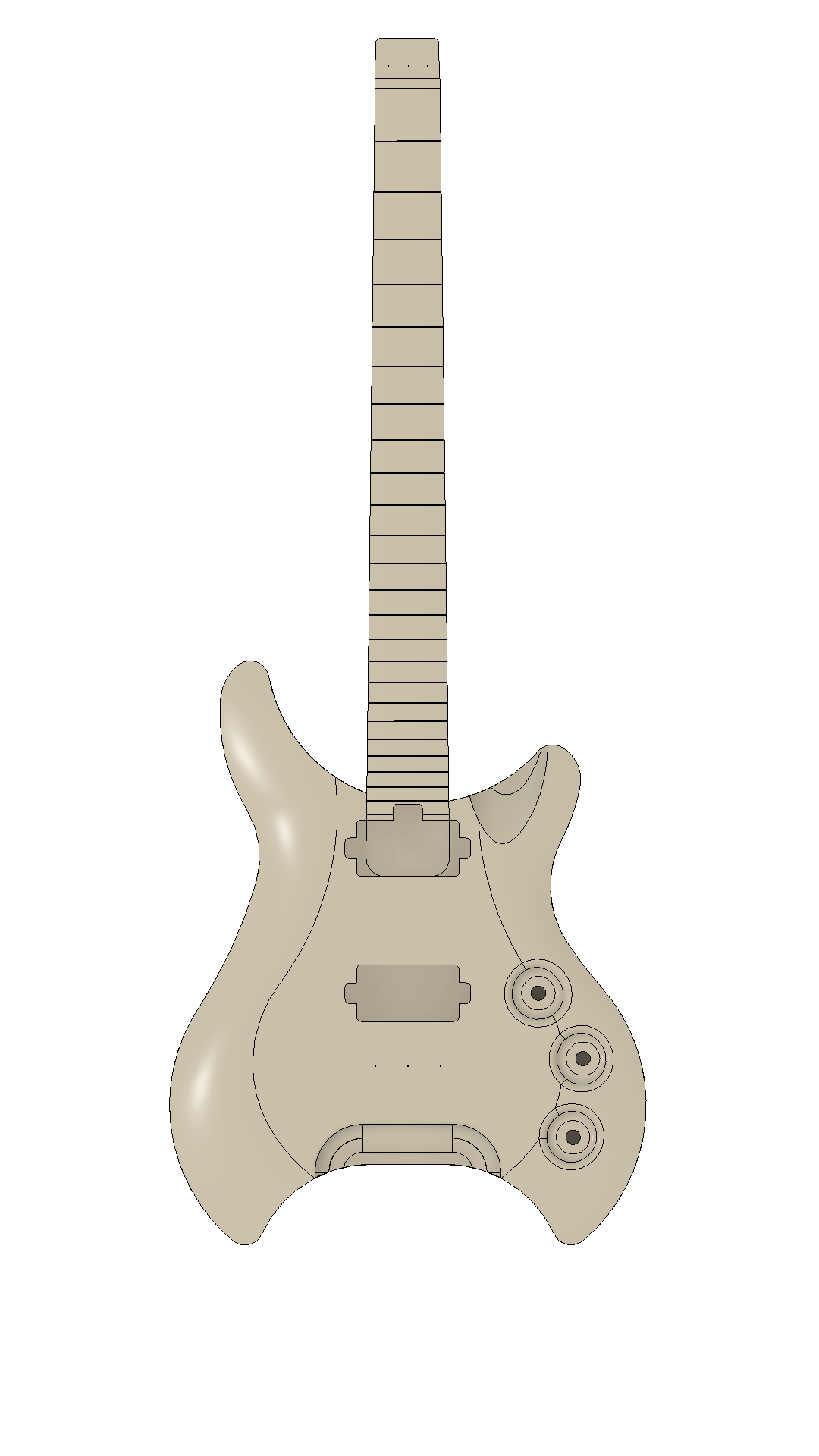

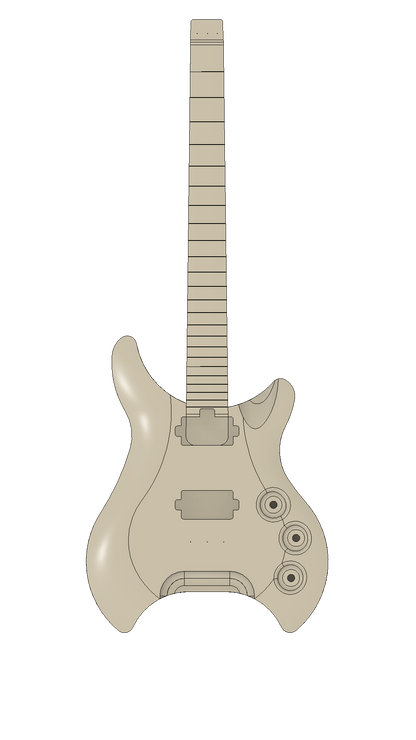

ED-HL01 – Carved Top Headless 6-String Guitar
Complete CNC Files for Custom Guitar Building

Build your own modern headless guitar with carved top contours using our precision CAD/CAM package. The ED-HL01 combines cutting-edge headless design with ergonomic body shaping—perfect for CNC router builders looking to create a high-performance instrument with traditional headpiece aesthetics.

Specifications:

-Scale Length: 25.5"

-Frets: 24

-Fretboard Radius: 10"

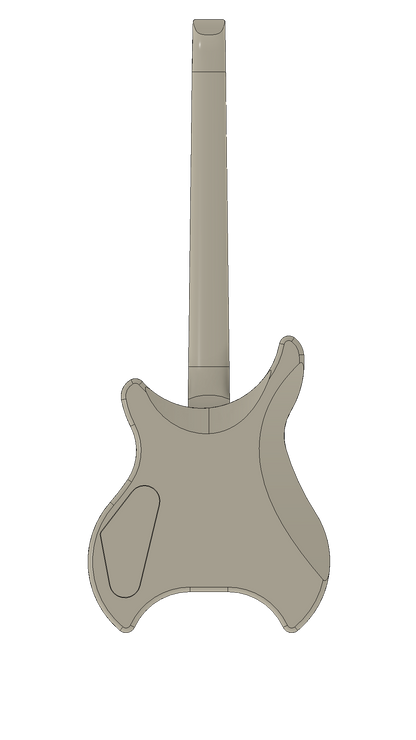

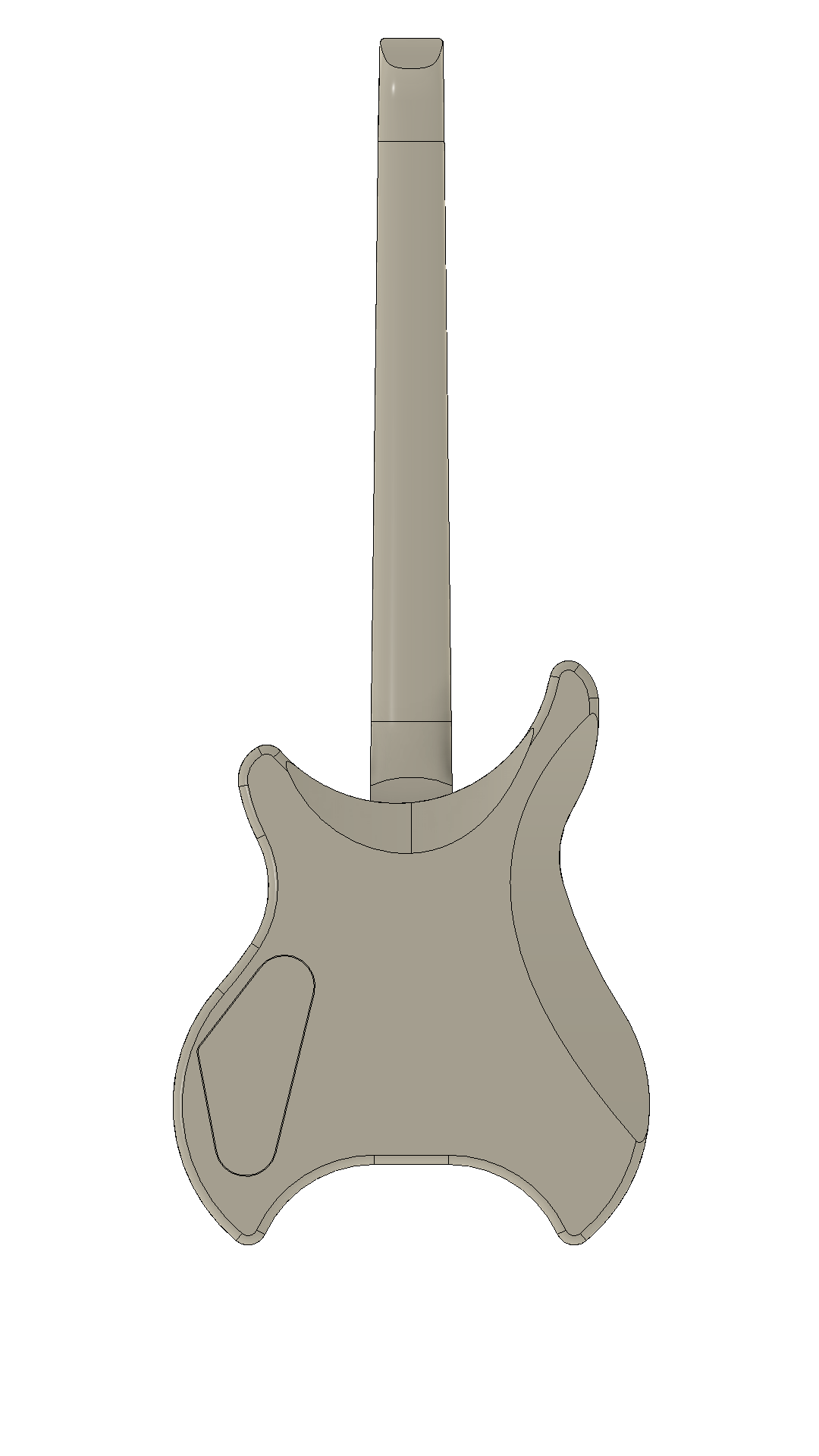

-Body Style: Carved top with belly cut and neck heel access

-Neck Profile: Comfortable modern C-shape with smooth transitions

-Pickups: Dual humbucker routing

-Hardware: Hipshot 6-string headless bridge system (traditional headpiece design)

-Electronics: Volume/Switch/Tone configuration

-Contours: Belly cut and enhanced neck heel access for upper fret playability

What's Included:
✓ G-Code files (.nc, .tap) – Ready to run on your CNC router
✓ CAD files (DXF, DWG) – For customization and modification
✓ Bonus_files folder – 3D models and 2D drawings
✓ Complete illustrated instructions (PDF) – Step-by-step CNC programs, tool paths, bit specifications, blank setup, and assembly guide
✓ Blank size specifications – Exact dimensions for body, neck, and fretboard blanks
✓ Recommended parts list with Hipshot and StewMac links

CNC Requirements:

-Body blank: 14" x 17" x 1.75" (can use drop-top: 0.65" top + 1.10" base)

-Neck blank: 3" x 27" x 1"

-Fretboard blank: 3" x 20.5" x 0.25"

-Circuit cover blank: 3" x 6.5" x 0.125"

-Recommended bits: 1/4" flat, 1/4" ball, 1/8" flat, 1/32" flat, 0.023" flat

-Compatible with: Mach3, UCCNC, LinuxCNC, Vectric VCarve, and most CNC control software

-Minimum work area: 20" x 14" x 3" (body operations)

Hardware Compatibility:

-Headless system: Designed for Hipshot 6-string headless system with traditional headpiece

-Truss rod: Spoke wheel hot rod truss rod (StewMac or equivalent)

-Optional: Neck reinforcement rod channels (programs included)

-Specifications included in instructions PDF

File Delivery:
Digital download immediately after purchase. All files delivered as a ZIP package to your email within minutes.

Note: This is a digital product. No physical items will be shipped. Files are for personal use only—no commercial reproduction.
