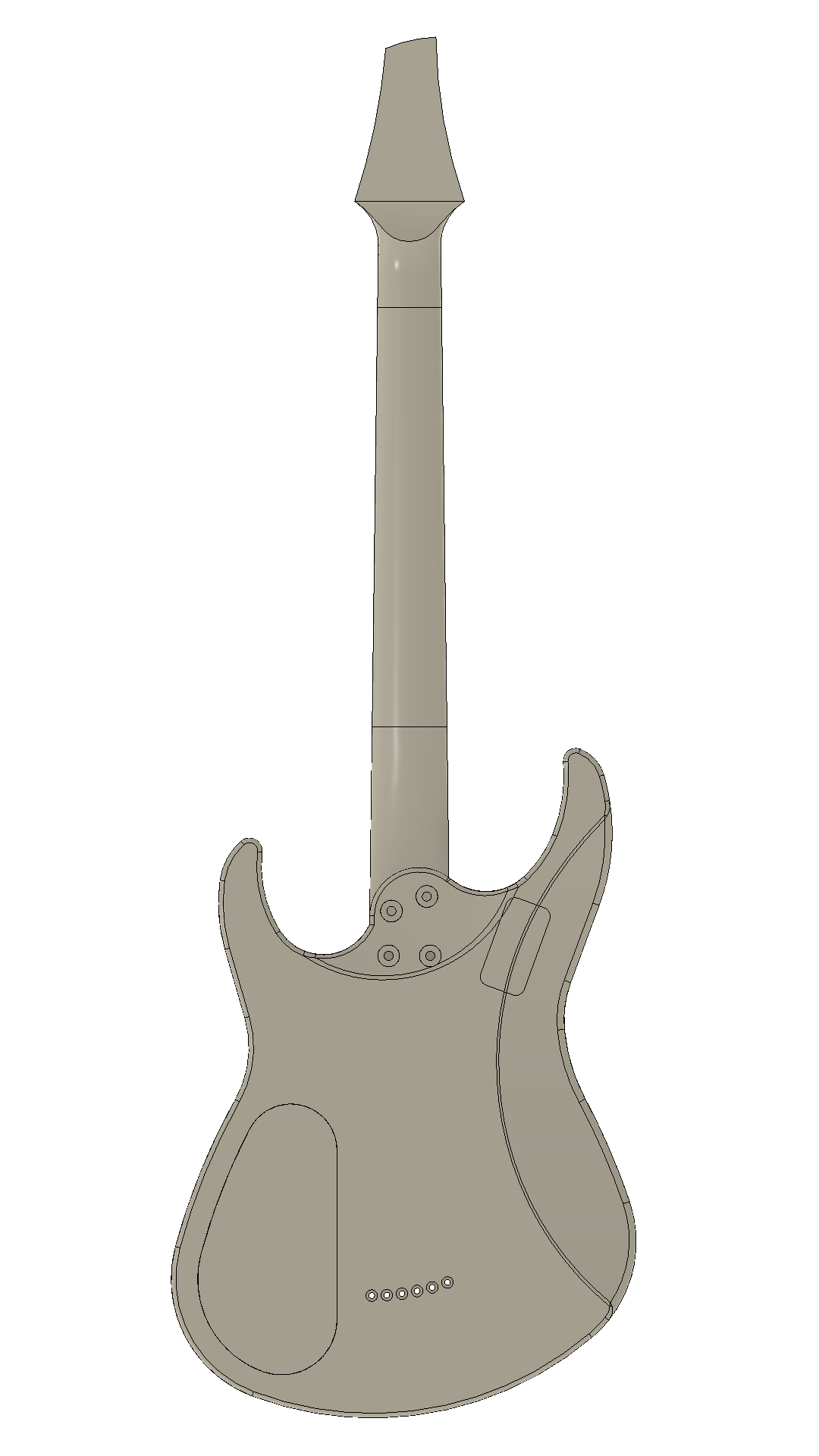

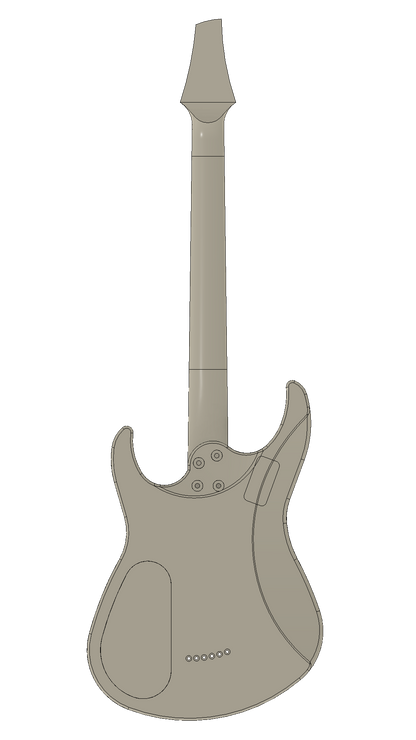

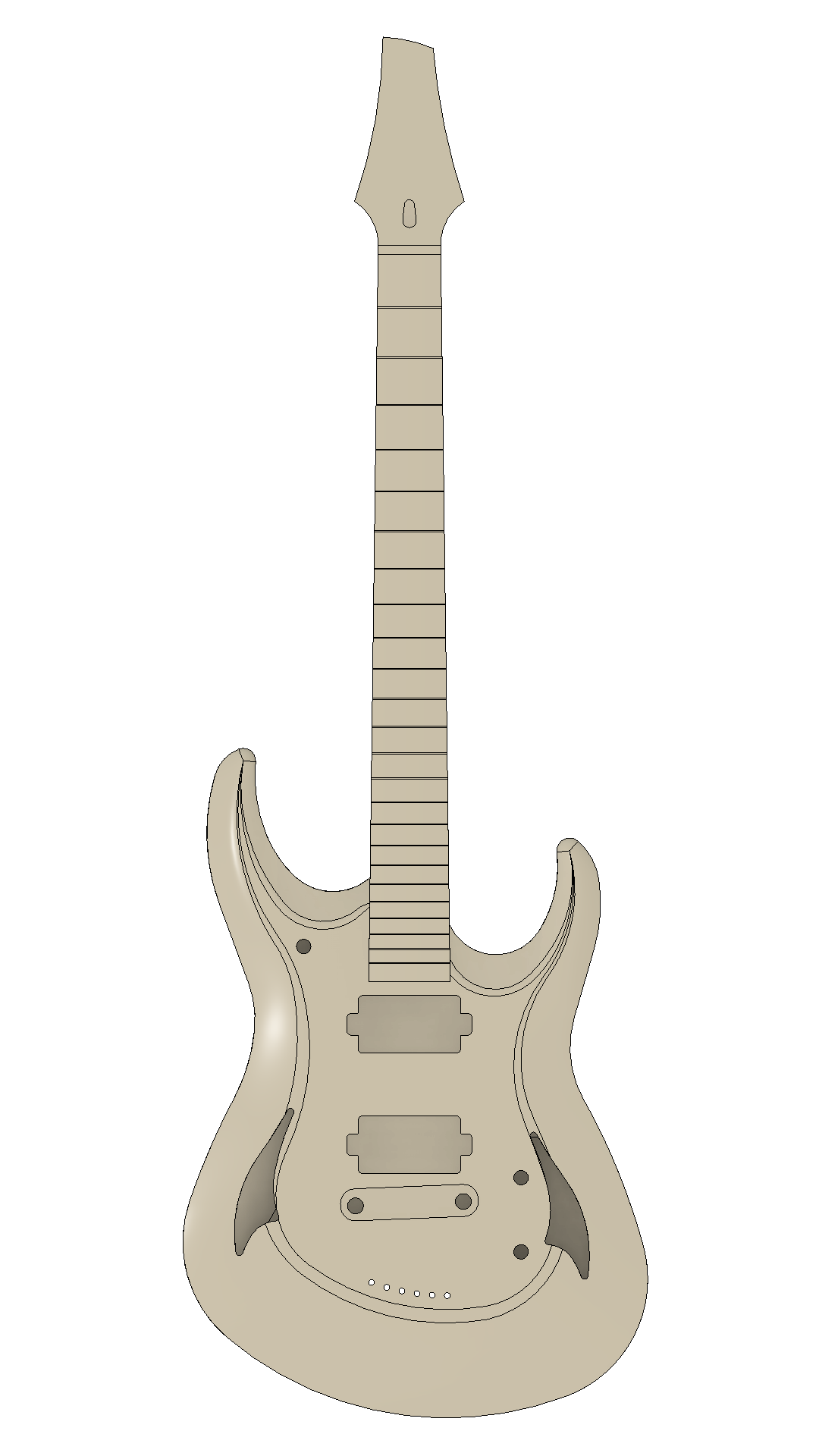

ED-HB01

ED-HB01 – Carved Top Hollow Body 6-String Guitar
Complete CNC Files for Custom Guitar Building

Build your own carved top hollow body guitar using our precision CAD/CAM package. The ED-HB01 features lightweight hollow body construction with modern super-strat styling—perfect for CNC router builders looking to create a resonant, high-performance instrument with exceptional playability.

Specifications:

-Scale Length: 25.5"

-Frets: 24

-Fretboard Radius: 9.5"

-Body Style: Super-strat with carved top, belly cut, and neck heel access

-Neck Profile: Comfortable modern C-shape (1st fret: 0.84", 12th fret: 0.92")

-Pickups: Dual humbucker routing

-Electronics: Volume/Tone/Switch configuration

-Headstock: 3+3 pointed design

-Contours: Belly cut and enhanced neck heel access for upper fret playability

-Construction: Two-piece hollow body (base + carved top)

What's Included:
✓ G-Code files (.nc, .tap) – Ready to run on your CNC router
✓ CAD files (DXF, DWG) – For customization and modification
✓ Bonus_files folder – 3D models and 2D drawings
✓ Complete illustrated instructions (PDF) – Step-by-step CNC programs, tool paths, bit specifications, blank setup, and assembly guide
✓ Blank size specifications – Exact dimensions for body base, body top, neck, and fretboard blanks
✓ Recommended parts list with StewMac links

CNC Requirements:

-Body base blank: 14" x 20" x 1.05"

-Body top blank: 14" x 20" x 0.50" (drop-top capability)

-Neck blank: 3.50" x 29" x 1.75"

-Fretboard blank: 3" x 20" x 0.25"

-Circuit cover blank: 4" x 8" x 0.125"

-Switch cover blank: 1.75" x 3" x 0.16"

-Recommended bits: 1/4" flat, 1/4" ball, 1/8" flat, 1/32" flat, 0.023" flat

-Compatible with: Mach3, UCCNC, LinuxCNC, Vectric VCarve, and most CNC control software

-Minimum work area: 22" x 16" x 3" (body operations)

Truss Rod Compatibility:

-Designed for 4mm Allen nut hot rod truss rod (StewMac or equivalent)

-Specifications included in instructions PDF

Hollow Body Construction:

-CNC-milled internal chambers for weight reduction and tonal resonance

-Two-piece glue-up process (base + carved top)

-Includes wire routing channels through pickups and circuit cavity

File Delivery:
Digital download immediately after purchase. All files delivered as a ZIP package to your email within minutes.

Note: This is a digital product. No physical items will be shipped. Files are for personal use only—no commercial reproduction.
